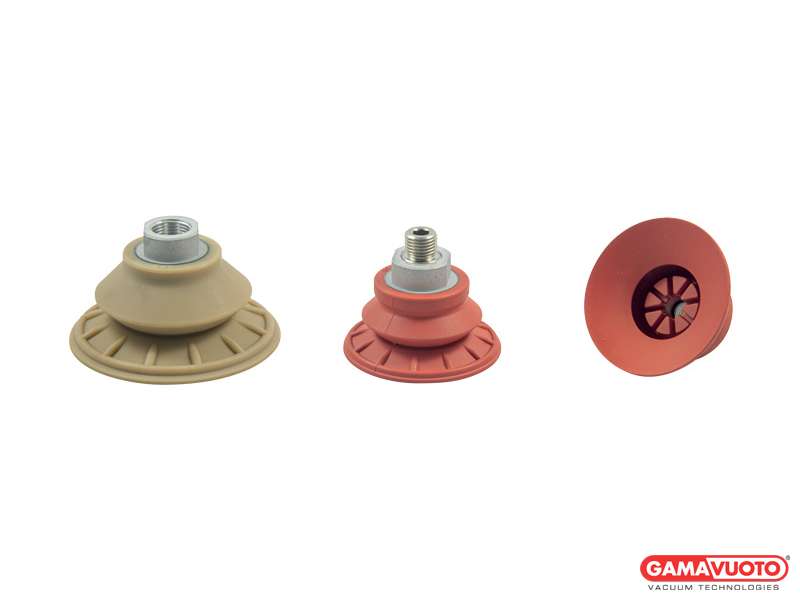

Ventose a soffietto - Serie VTBL
Ventose a soffietto - Serie VTBL
| Art. | D | d | F | H | CH | h |
|---|---|---|---|---|---|---|
| VTBLA 32 | 32 | 6 | 1/4” | 28 | 17 | 9 |
| VTBLA 42 | 42 | 6 | 1/4” | 29 | 17 | 10 |
| VTBLA 52 | 52 | 8 | 3/8” | 37 | 22 | 11,5 |
| VTBLA 63 | 63 | 8 | 3/8” | 41,5 | 22 | 14,5 |
| VTBLA 85 | 85 | 8 | 3/8” | 35 | 22 | 22 |
| Art. | D | d | F | H | CH | CH1 | h |
|---|---|---|---|---|---|---|---|
| VTBLB 32 | 35 | 6 | 3/8” | 44 | 17 | 22 | 9 |
| VTBLB 42 | 45 | 6 | 3/8” | 44 | 17 | 22 | 10 |
| VTBLB 52 | 55 | 8 | 1/4” | 42 | 22 | 19 | 11,5 |
| VTBLB 63 | 65 | 8 | 1/4” | 46,5 | 22 | 19 | 14,5 |
| VTBLB 85 | 85 | 8 | 1/4” | 55 | 22 | 19 | 22 |
| Art. | D | d | F | H | CH | CH1 | h |
|---|---|---|---|---|---|---|---|
| VTBLC 32 | 35 | 6 | 1/4” | 28 | 17 | 6 | 9 |
| VTBLC 42 | 45 | 6 | 1/4” | 29 | 17 | 6 | 10 |
| VTBLC 52 | 55 | 8 | 1/4” | 37 | 22 | 6 | 11,5 |
| VTBLC 63 | 65 | 8 | 1/4” | 41,5 | 22 | 6 | 14,5 |
| VTBLC 85 | 85 | 8 | 1/4” | 50 | 22 | 6 | 22 |
