Disc suction cup VDS series with vulcanized support in steel

Disc suction cup VDS series with vulcanized support in steel

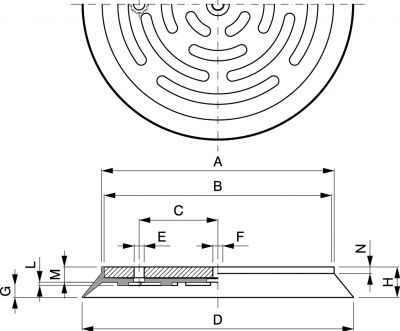

Art C G L M N H
VDS 110 74 70 26 110 1/4" M12 10 2 14 5 26
VDS 150 115 110 39.8 150 3/8" M12 7.5 4 14.5 5 26
VDS 200 164 160 47.5 200 3/8" M12 11 4 14 7 28
VDS 250 215 210 72 250 3/8" M12 11 4 14 7 28
VDS 300 166 260 89 300 1/2" M16 11 5 15 7 31
VDS 350 316 310 89 350 1/2" M16 11 5 15 7 31

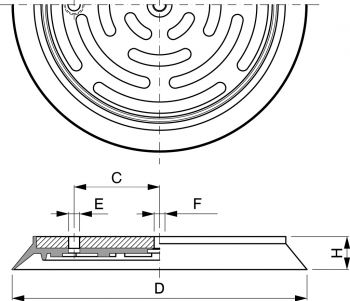

Art C D E F H
VDS 111 26 110 1/4" M12 26
VDS 151 40 150 3/8" M12 26
VDS 201 47.5 200 3/8" M12 28
VDS 251 72.5 250 3/8" M12 28
VDS 301 89 300 1/2" M16 31
VDS 351 89 350 1/2" M16 31
