Retaining valves
Retaining valves
These are valves, made of bronze with a nylon/fibre glass shutter.
They are essential in lubricated vacuum pumps to prevent the oil returning during the engine extinction phase due to counterrotation.

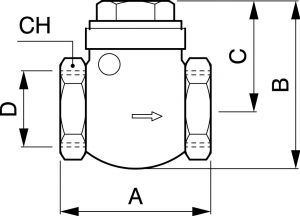

| Art. | A | B | C | CH |
|---|---|---|---|---|
| EVRV 1/4 | 42 | CH1 7 | G. 1/4" | 17 |
| EVRV 3/8 | 60 | 34 | G. 3/8" | 27 |
| EVRV 1/2 | 62 | 34 | G. 1/2" | 27 |
| EVRV 3/4 | 67 | 42 | G. 3/4" | 33 |
| EVRV 1 | 84 | 52 | G. 1" | 40 |
| EVRV 1·1/4 | 92 | 62 | G. 1-1/4" | 50 |
| EVRVl· 1/2 | 92 | 71 | G. 1-1/2" | 55 |
| EVRV 2 | 100 | 87 | G. 2" | 70 |
| Art. | A | B | C | D | CH |
|---|---|---|---|---|---|
| EVRO 3/8 | 47 | 55 | 38 | G. 3/8" | 25 |
| EVRO 1/2 | 51 | 59 | 42 | G. 1/2" | 27 |
| EVRO 3/4 | 61 | 69 | 45 | G. 3/4" | 33 |
| EVRO 1 | 70 | 78 | 52 | G. 1" | 42 |
| EVRO 1-1/4 | 85 | 93 | 63 | G. 1-1/4" | 51 |
