Rubber links
Rubber links

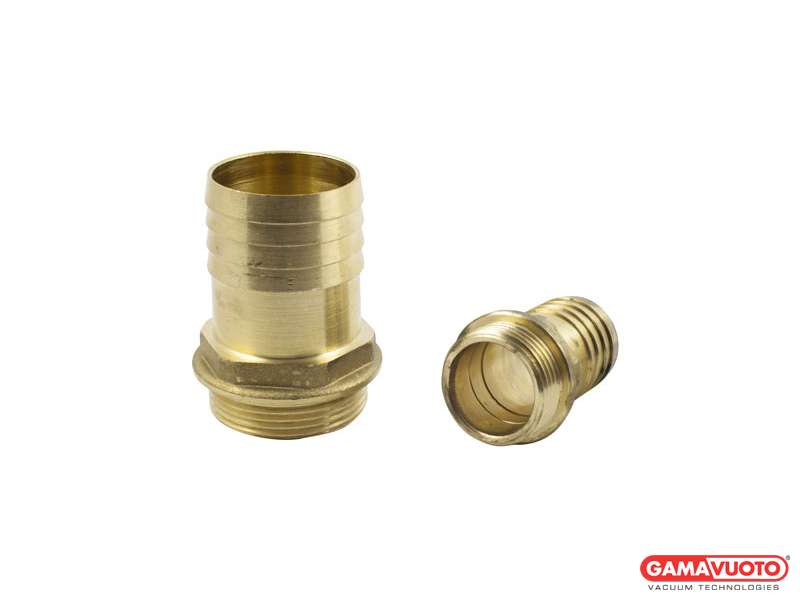

These are made of brass and allow the flexible tubes to be connected to the pumps and/or other plant components.

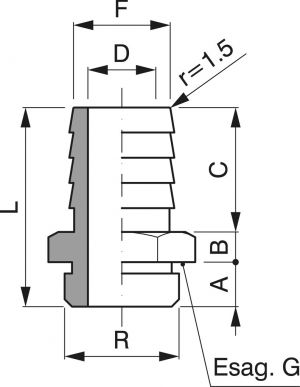

| Art. | A | B | C | D Ø | F Ø | G | L | R Ø |
|---|---|---|---|---|---|---|---|---|
| RO 1/4" | 8 | 5 | 20 | 7 | 12 | 18 | 33 | 1/4" |
| RO 3/8" | 9 | 5 | 20 | 9 | 12 | 21 | 34 | 3/8" |
| RO 1/2" | 11 | 5 | 20 | 12 | 17 | 26 | 36 | 1/2" |
| RO 3/4" | 10 | 9 | 30 | 18 | 22 | 25 | 49 | 3/4" |
| RO 3/4"-20 | 10 | 9 | 30 | 16 | 20 | 23 | 49 | 3/4" |
| RO 1" | 11 | 10 | 35 | 26 | 27 | 30 | 56 | 1" |
| RO 1"-30 | 11 | 10 | 35 | 25 | 30 | 33 | 56 | 1" |
| RO 1 1/4" | 12 | 10 | 38 | 30 | 35 | 38 | 60 | 1" 1/4 |
| RO 1 1/2" | 14 | 9 | 43 | 40 | 40 | 45 | 67 | 1" 1/2 |
| RO 1 1/2"-45 | 14 | 13 | 49 | 40 | 45 | 48 | 74 | 1" 1/2 |
| RO 2"-50 | 16 | 13 | 47 | 45 | 50 | 55 | 76 | 2" |
| RO 2"-51 | 16 | 13 | 47 | 45 | 51 | 55 | 76 | 2" |
| RO 3"-76 | 20 | 15 | 65 | 69 | 76 | 83 | 102 | 3" |
