In-line vacuum generators mod. VL

In-line vacuum generators mod. VL

In line vacuum generators provided with great suction power.

Thanks to their shape, since the aspiration and the air exhaust are on the same line and direction, these generators are particularly suitable for taking and transporting granulated, powders, liquids, vapors and fumes.

Since no power connection is required, they can also be used in environments under the hazard of inflammability and they need virtually no maintenance.

In addition, thanks to their good suction flow, they can be used as a source of vacuum when removing and handling porous materials such as paper and textiles.

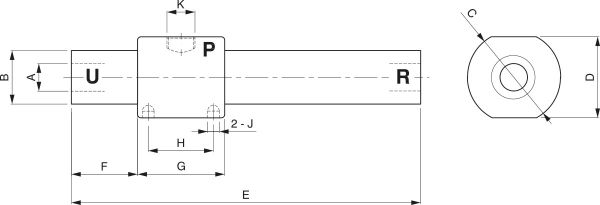

Art. A B C D E F G H J K
VL 07-03 6.5 18.5 32 30 89 19 25 18 M4 G1/8
VL 12-06 12.5 24 38 34 140 25.5 32 23 M4 G1/4
VL 19-06 19 32 50 45 190 38 50 40 M4 G3/8
VL 38-03 25 38 59 55 198 40 56 40 M4 G3/8
VL 38-06 38 49.6 69 65 205 40 60 42 M4 G3/8
Art. Velocità dell'ariaAir velocityLuftgeschwindigkeit PortataVacuum flowTragfähigkeit Vuoto maxMax vacuumMax. Vakuum Consumo d'aria (l/min)Air consumption (l/min)Luftverbrauch (l/min)
  ft/s l/min mm/Hg 2.8 bar 5.5 bar
VL 07-03 485 295 26 85 160
VL 12-06 361 870 35 395 680
VL 19-06 325 1825 28 790 1365
VL 38-03 223 4400 4.4 405 695
VL 38-06 270 5610 9 790 1365
