Mini vacuum - pressure switch
Very small vacuum switches with adjustable membranes, made with only one connection, NO or NC.
Adjustment of the vacuum (range from -150 to -675 mm/Hg) is achieved by moving the setscrew situated at the top.
lt Is important to make sure that the screw is not turned completely, in order to avoid affecting correct functioning.

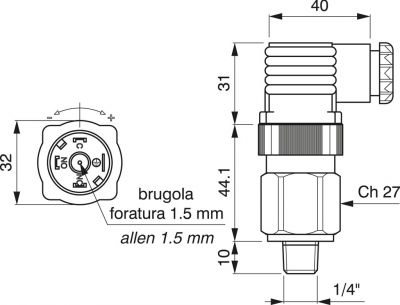

![SVC_PACC_1](https://www.gamavuoto.it/core/vendor/timthumb.php?src=https://www.gamavuoto.it/media/productarticle/SVC_PACC_1.jpg&w=400&h=0&zc=1&q=80&wm=0)
Art. SVC/PACC | Dati tecniciTechnical dataTechnische Daten |
---|---|
Tensione max di lavoroMax working powerMax. Arbeitsspannung | 250 V |
Temperatura massima del fluidoMax fluid temperatureArbeitstemperatur | +80°C |
ProtezioneProtectionSchutz | IP 65 |
Caratteristiche elettricheElectrical specificationsStrom | 5(4)A/14Vdc 4(3)A/30Vdc 5(3)A/125Vdc 3(2)A/250Vdc |
Tolleranza d'intervento a 20°CIntervention tolerance 20°C Eingriffstoleranz bei 20 °C | ± 100 mbar |
Pressione d'esercizioWorking pressureBetriebsdruck | da -200 a -900 mbar |
Art. SVC/PACC | Contatto in scambioCommutation contactAustauschkontakt |
---|
