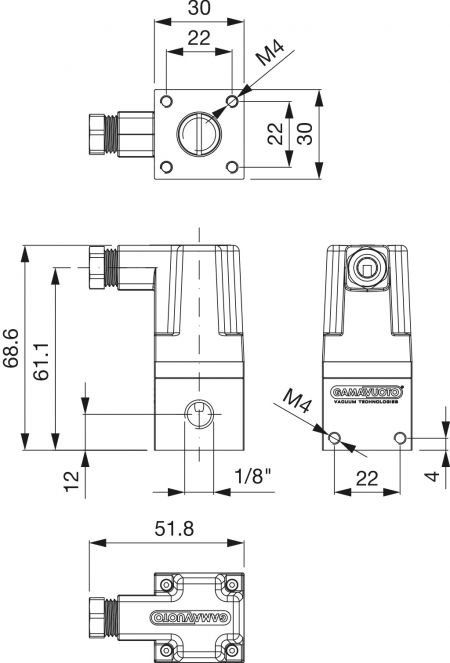

A very small vacuum switch, which functions in the same way as the larger series, with the difference that in this model the differential is not adjustable. It is particularly useful in situations where an electrical signal is needed when a certain level of adjustable vacuum is reached, for safety reasons, to start a cycle, to control the grip of the suction cup, ...etc. The switch is supplied with a rubber protection cap.
|Art. SVC/L||Dati tecniciTechnical dataTechnische Daten|
|Pressione d’esercizioWorking pressureBetriebsdruck||da –60 a –700 mm Hg|
|ContattiContactsKontakte||uno in commutazioneone in commutation contact contacteiner in Umschaltung|
|Portata dei contattiContact loadDurchsatz der Kontakte||5 A a 250 V. ca.|
|Collegamenti elettriciElectrical connectionsElektroanschlüsse||terminali a fast-onfast-on terminalsSchnell-Klemmen|
|Temperatura ambienteWorking temperatureRaumtemperatur||–5 +70° C|
