Multi-stage vacuum generators mod. AVLM 24 - 30

Multi-stage vacuum generators mod. AVLM 24 - 30

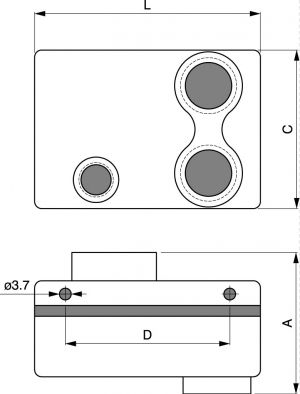

Art. A C L Ai Ø Ao Ø V Ø D
        Air in Air out Vacuum
AVLM 24 43.9 45 66.5 1/8" 3/8" x2 1/2" 46.5
AVLM 30 43.9 45 66.5 1/8" 3/8" x2 1/2" 46.5



CaratteristicheTechnical detailsEigenschaften AVLM 24 AVLM 30
Pressione ottimale d’eserc. (Bar max 7)Optimum working pressure (Bar max 7)Optimaler Betriebsdruck (Bar max 7) 6 6
Consumo d’aria Nl/min a 4 BarAir consumption Nl/min at 4 BarLuftverbrauch Nl/min bei 4 Bar 144 144
Vuoto max raggiungibile -kPa a 6 BarMax. vacuum possible -kPa 6 BarMax. erreichbares Vakuum -kPa bei 6 Bar 93 93
Portata (aspirazione) Nl/min. a 6 Bar(Suction) capacity Nl/min. at 6 BarDurchsatz (Ansaugung) Nl/min. bei 6 Bar 240 270
